The Airwolf is the most modern fixed gear freestyle frame out there. It's built around 26" wheels, has a positive BB that allows double peg grinds, and a mid bottom bracket. It clears a 2.3 tire with the wheel slammed fully forward in the dropouts, and was designed to be used with our venerable Dropout fork.
This is the future of 26" fixed.
Features
Frame Design
Fork
14mm Dropouts
E.D. Finish
Frame Design

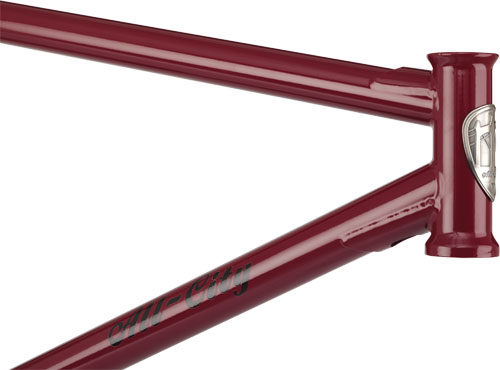

100% full 4130 ChroMoly steel. Double butted down, top, and seat tubes. Top and down tube gussets at the head tube.
Fork
The Airwolf is designed to be used with our Dropout fork

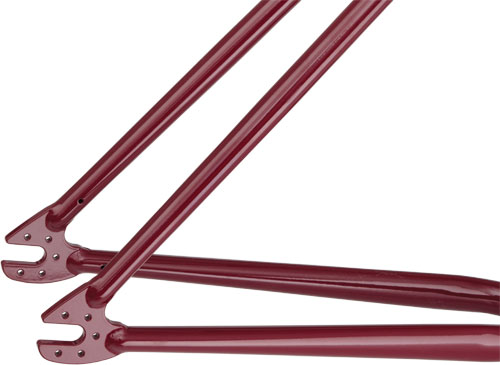

14mm Dropouts
14mm dropouts w/ spacers for 10mm hubs
Tire Clearance
26 X 2.3 slammed fully forward in the dropouts
E.D. Finish
The entire bike is E.D. coated inside and out. E.D. coating not only improves the quality and durability of the paint, but is the best rust proofing agent going. With the E.D. coating there is no need to Frame Saver the bike, it’s already done for you.

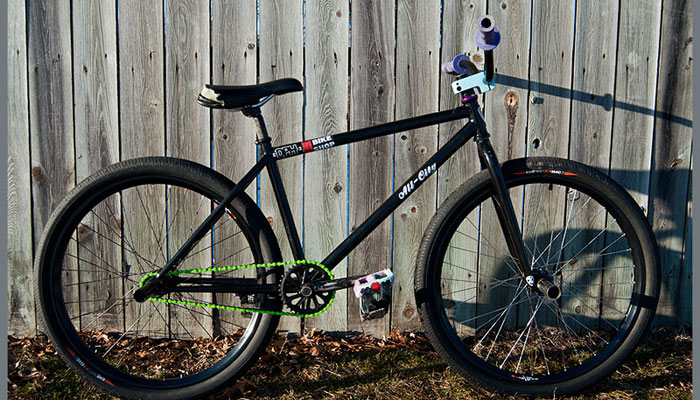

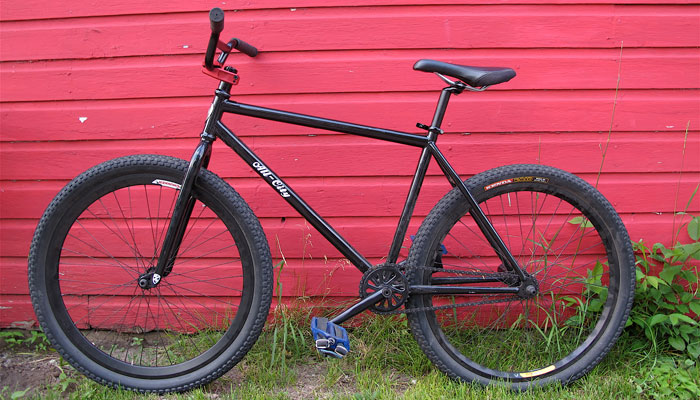

Photos
Build Specs
Head Set: Campy 45/45 standard
Dropouts: 14mm w/ spacers for 10mm compatibility
Bottom Bracket: Mid
Rear Spacing: 120mm
Seatpost: 27.2
Seat Collar: 30.0
Brakes: Long reach road
Max Chainring: 37t
Frame Weight: 5.5lbs
Geometry pt 2
| Size | Small | Medium | Large | |
|---|---|---|---|---|
 |
Head Tube Angle | 72.5 | 72.5 | 72.5 |
 |
Seat Tube Angle | 74 | 74 | 74 |
 |
Top Tube Length | 572 | 588 | 603 |
 |
Seat Tube Length | 400.0 | 450.0 | 500.0 |
 |
Chainstay Length | 385 | 385 | 385 |
 |
Bottom Bracket Drop | -4.0 | -4.0 | -4.0 |
 |
Fork Offset | 30 | 30 | 30 |
 |
Total Fork Length | 410 | 410 | 410 |
 |
Head Tube Length | 110 | 125 | 140 |
 |
Wheelbase | 1004 | 1020 | 1035 |
Part Numbers
| Part Number | Size | Color | Description |
|---|---|---|---|
| FM4733 | Small | Wolf's Blood | Airwolf Frame Small |
| FM4734 | Medium | Wolf's Blood | Airwolf Frame Medium |
| FM4735 | Large | Wolf's Blood | Airwolf Frame Large |
