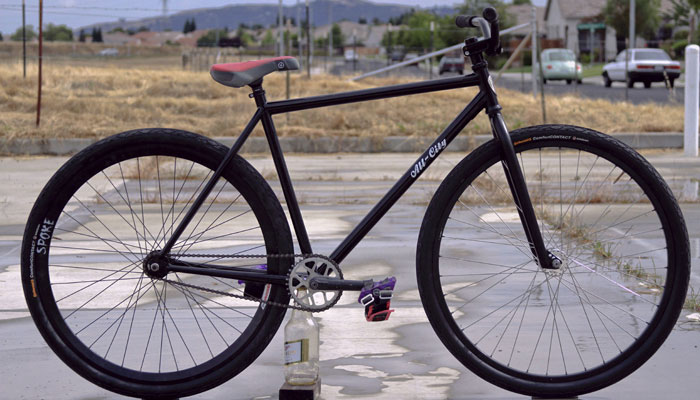

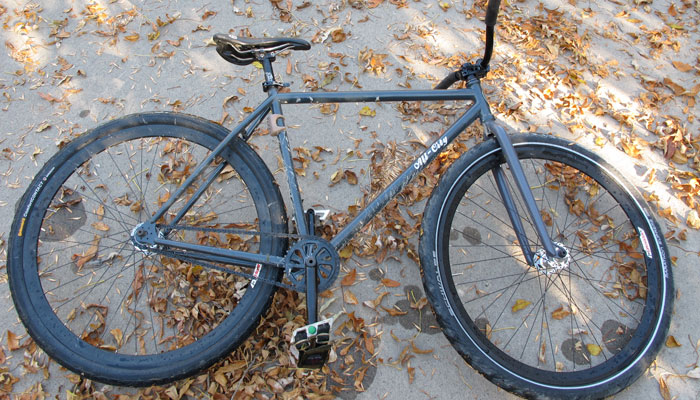

Def Wish Frame

If you like your fixed gears with fat meats the Def Wish is for you.  It's great as an all-arounder or a 700c fixed freestyler.

It’s got a mid BB, 14mm dropouts, 45/45 internal headset, and updated geometry.  We’ve also redesigned the headtube, gussets, rear end, and given it larger overall tubing diameters.  The crown jewel of this beast though, is that it fits a 29’er tire slammed without the need for dramatic dimples on the chainstays.

The Def Wish is sold as a frame only, and was designed to be used with our Dropout fork.

Features

Def Wish
left right
Frame

Frame

100% full 4130 ChroMoly steel. Double butted down, top, and seat tubes. Top and down tube gussets at the head tube.

Internal Headset

Internal Headset

Campy 45/45 standard

Fork

Fork

Designed to be used with our Dropout fork

14mm Dropouts

14mm Dropouts

14mm with spacers to accomodate 10mm hubs

Tire clearance

29X2.0 with the tire slammed fully forward in the dropouts.

E.D. Finish

E.D. Finish

The entire bike is E.D. coated inside and out. E.D. coating not only improves the quality and durability of the paint, but is the best rust proofing agent going. With the E.D. coating there is no need to Frame Saver the bike, it’s already done for you.

Photos

  • flickr
  • flickr
  • flickr
  • flickr
  • flickr
  • flickr
  • flickr
  • flickr

Build Specs

Head Set: Campy 45/45 standard

Dropouts: 14mm w/ spacers for 10mm compatibility

Bottom Bracket: Mid

Rear Spacing: 120mm

Seatpost: 27.2

Seat Collar: 30.0

Brakes: Long reach road

Max Chainring: 37t

Frame Weight: 5.5lbs

Tire Clearance: 29 X 2.0

Geometry pt 2

Geometry
SizeSmallMediumLarge
(A) Head Tube Angle 72.5° 73° 73°
(B) Seat Tube Angle 74.5° 74.5° 74.5°
(C) Top Tube Length 570 mm 590 mm 615 mm
(D) Seat Tube Length 470 mm 515 mm 560 mm
(E) Chainstay Length 410 mm 410 mm 410 mm
(F) Bottom Bracket Drop 50 mm 50 mm 50 mm
(G) Fork Offset 30 mm 30 mm 30 mm
(H) Total Fork Length 410 mm 410 mm 410 mm
(I) Head Tube Length 110 mm 125 mm 140 mm
(J) Wheelbase 1013 mm 1028.7 mm 1054.1 mm

Part Numbers

Part Number Size Color Description
FM4750 Small Black Def Wish Frame Small
FM4751 Medium Black Def Wish Frame Medium
FM4752 Large Black Def Wish Frame Large
6932271497_89d0735373_b[1] 8018572141_6e50c3ed81_k[1] pissy000[1] 7577172466_ebc868a9e5_o[1] IMG_4683 IMG_6422 5332903511_3f944f1753_o[1] ACT-03[1] defwish[2] IMG_7678
See more photos of the Def Wish in our Flickr gallery.
