We are no longer making Nature Boy Zona's, 2013 was the last run. If you can still find one, we highly recommend pouncing on it.

The ultimate steel single speed cross bike. The Nature Boy you know and love with a high end Columbus Zona tubeset, Press Fit 30 bottom bracket, and lighter non removable brake posts.

It's about a half pound lighter than the standard Nature Boy, the Zona tubes give it a silky smooth ride, and the PF30 BB provides an excellent sprinting platform.

The complete feature a Cane Creek 40 headset, Velocity A23 Rims, lightweight Formula cassette hubs, a Surly Cog and spacer kit (to allow you to run two cogs if  you wish), and an FSA Gossamer Press Fit 30 crankset.  Ready to race.

Features

left right

Build Specs

Frame | All-City Nature Boy Zona

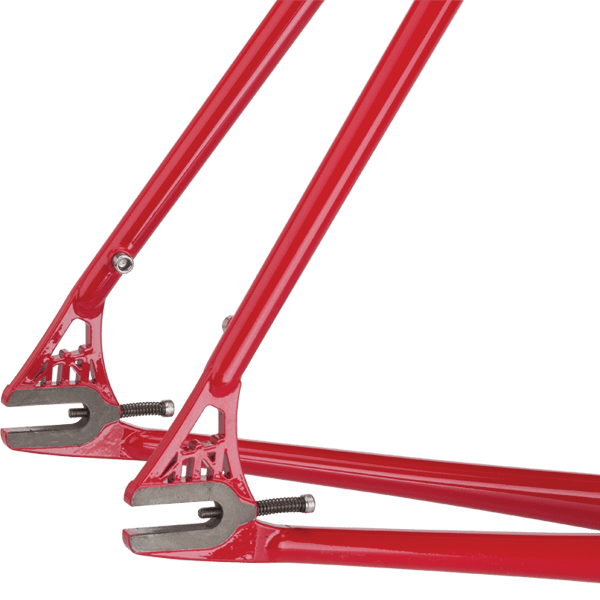

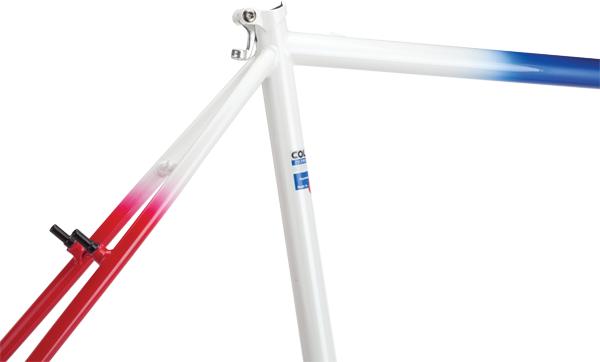

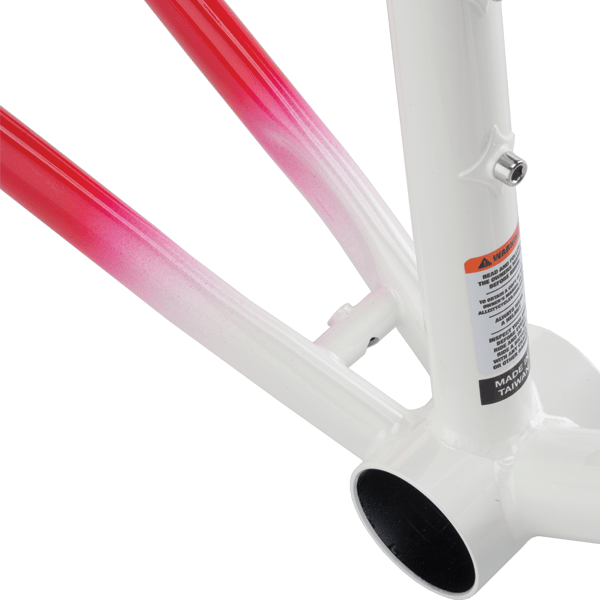

Columbus Zona Tubeset. Double butted down, top, and seat tubes. Externally tapered, ovalized, and dimpled chain stays, tapered seat stays.

1 1/8th headtube, 130mm rear spacing, Press Fit 30 bottom bracket, 27.2 seat post

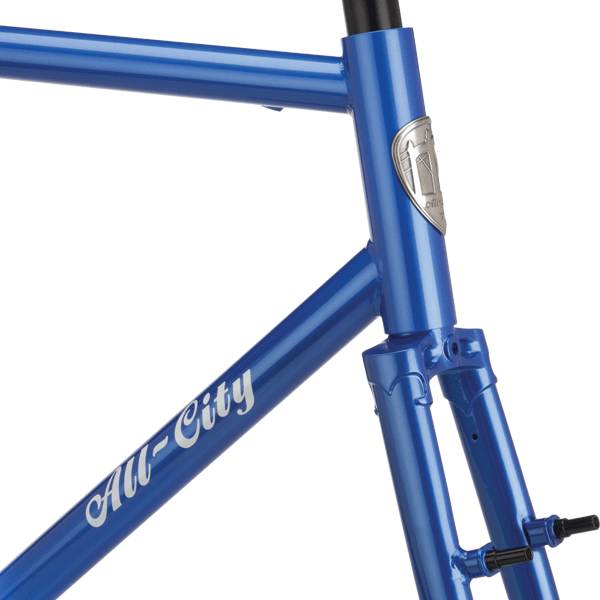

Fork | All-City Nature Boy
612 Select ChroMoly double butted tapered fork blades, lugged crown and matching dropout

Headset | Cane Creek 40 Series
Black, 6061 T6 aluminum

Stem | Salsa Pro Moto 3
Black, four bolt, 1 1/8th threadless, 31.8 clamp

Handlebar | Salsa Cowbell 3
Black,  flared shallow round drop

Tape | Velo
Black cork

Brake Lever | Tektro RL340
Black, aero

Brake | Tektro CR720
Black, cantilever, wide Euro style

Crankset | FSA Gossamer
Black, PF30, 42 tooth ring

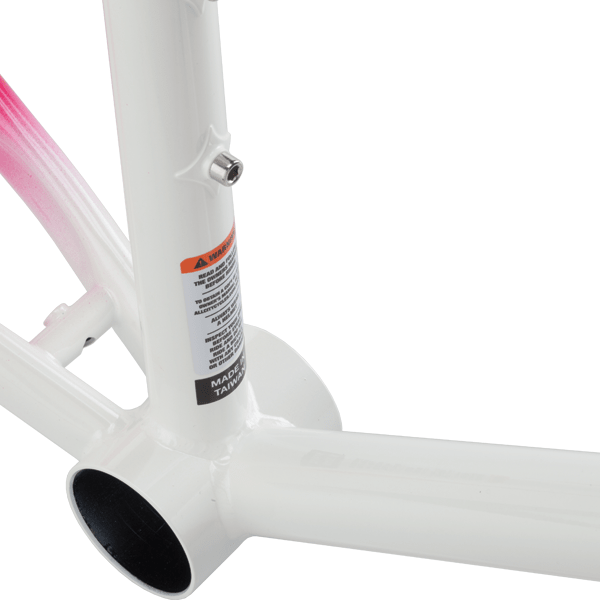

Bottom Bracket | FSA
Press Fit 30

Seatpost | FSA SL 280
Black, alloy, single bolt, 27.2mm

Saddle | All-City Gonzo
Black, comfy, racy

Cog | Surly
17 tooth, 3/32"

Cassette Spacer Kit | Surly

Chain | KMC X8.93
Silver, 3/32"

Hubs | Formula RB891, RB35
Black, 130mm rear, 10 Speed, 28 hole

Rims | Velocity A23
Black, 28 hole, 23mm wide

Tires | Kenda Small Block Eight
700X35c Steel bead

Tubes | Cheng Shin
700X28 Presta Valve

Geometry pt 2

Geometry
Size49 cm52 cm55 cm58 cm
(A) Head Tube Angle 71° 71.5° 72° 72.5°
(B) Seat Tube Angle 73.5° 73° 73° 72.5°
(C) Top Tube Length 535 mm 550 mm 565 mm 585 mm
(D) Seat Tube Length 515.5 mm 545.4 mm 575.4 mm 605.3 mm
(E) Chainstay Length 420 mm 420 mm 420 mm 420 mm
(F) Bottom Bracket Drop 70 mm 70 mm 70 mm 70 mm
(G) Fork Offset 45 mm 45 mm 45 mm 45 mm
(H) Total Fork Length 395 mm 395 mm 395 mm 395 mm
(I) Head Tube Length 110 mm 130 mm 150 mm 175 mm
(J) Wheelbase 992.5 mm 1003.7 mm 1014.4 mm 1029.3 mm
Standover 778 mm 802 mm 827 mm 853 mm
Stack 542.2 mm 563.0 mm 583.9 mm 609.6 mm
Reach 374.4 mm 377.9 mm 386.5 mm 392.8 mm
Handlebar Width 40 cm 42 cm 42 cm 44 cm
Crankarm Length 170 mm 175 mm 175 mm 175 mm

Part Numbers

Part Number Size Color Description
FM4786 52cm Red White Blue Fade Nature Boy Zona Frameset
FM4787 52cm Red White Blue Fade Nature Boy Zona Frameset
FM4788 55cm Red White Blue Fade Nature Boy Zona Frameset
FM4789 58cm Red White Blue Fade Nature Boy Zona Frameset
BK4786 49cm Red White Blue Fade Nature Boy Zona Complete
BK4787 52cm Red White Blue Fade Nature Boy Zona Complete
BK4788 55cm Red White Blue Fade Nature Boy Zona Complete
BK4789 58cm Red White Blue Fade Nature Boy Zona Complete
